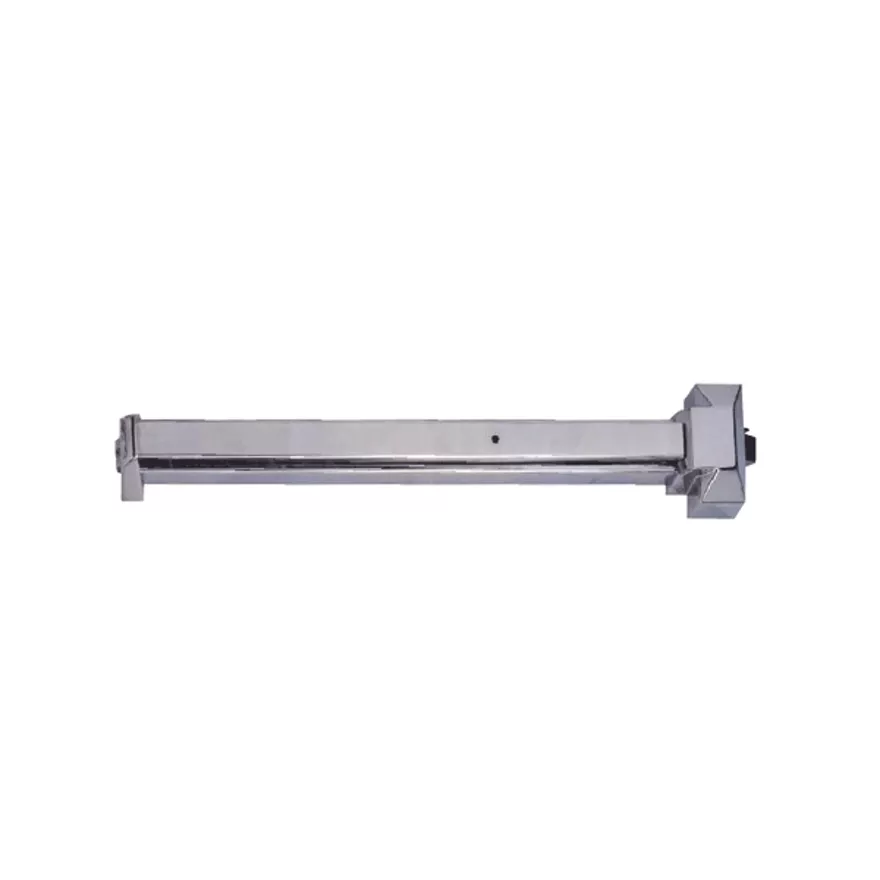

8000 Series | ASSA ABLOY

Panic Exit Device

Material Push bar of aluminum extruded, steel Pressed or stainless pressed and spring of stainless steel.
Latch bolt 3/4” throw,stainless steel.
Dead latch bolt 5/8” ,stainless steel.
Strike For 5/8” stop, plus shim for 1/2” stop
Projection 2-1/2” maximum, 1-7/8” pressed.
Reversible Non-handed, reversible for all functions and trims, except 80 TP.
For door 1-3/4” thick standard. Specify if other Than 1-3/4”.
Backset 2-3/4”
Door width 3’ standard for door width of 2’-6” to 3’-0”; 4’ standard for door width of 3’-0” to 4’-0”
Stile 4-1/4”minimum.
Mounting height 40-5/16” from CL to finished
floor recommended
Mounting Furnished standard with sheet metal & Machine screws or SNB as option.
Cylinders For trim, knob, lever & thumb-press type, “Schlage C” key way.
Dogging 1/4 turn, hex key dogging on Non-fire labeled device.
Operation Inside by slight pressure on any point On the push bar at all time.
Models Rim type & vertical rod available.
Trims As listed on next page.
UL listed : For “Panic Hardware” and “B” Labelled (1-1/2hr) fire exit hardware.
