Lockwood 9800 series

9800 Series Concealed Overhead Transom Door Closers

A range of  designed specifically to meet the needs of aluminium door requirements. Standard features include : non hold open, 90° and 105° hold open. Adjustable bottom pivot to suit both applications.

Note: All products supplied with accessories suitable for Aluminium door applications. For Fire/Timber Door applicable door kits need to be added.

The beauty of Lockwood's range of concealed door closers is that they stay virtually invisible when the door is closed, keeping your design pure and clean as you intended.  Innovative design enables flexibility over a wide range of applications available in two versions for both single and double action door applications. Designed and manufactured to world class standards ensures the highest possible quality, efficiency and reliable performance.

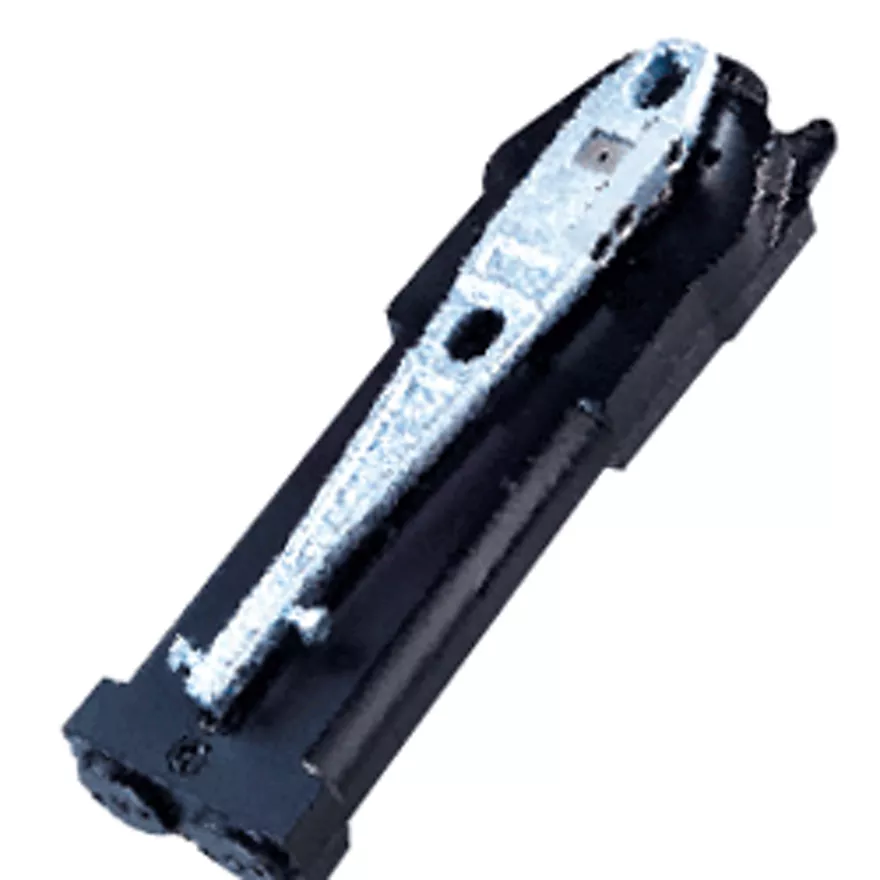

9800 series Overhead Transom Door Closer (OTC)

• Double action concealed in door transom
• Fixed power sizes 2,3 and 4
• Up to 1200mm width doors
• Up to 115Kg weight doors
• Minimum door thickness 38mm
• Opening angle 130° (in both directions)
• Independent closing and latching controls
• Non hold open
• 90° hold open
• 105° hold open
